1 3
Q5/08-FBN12-30

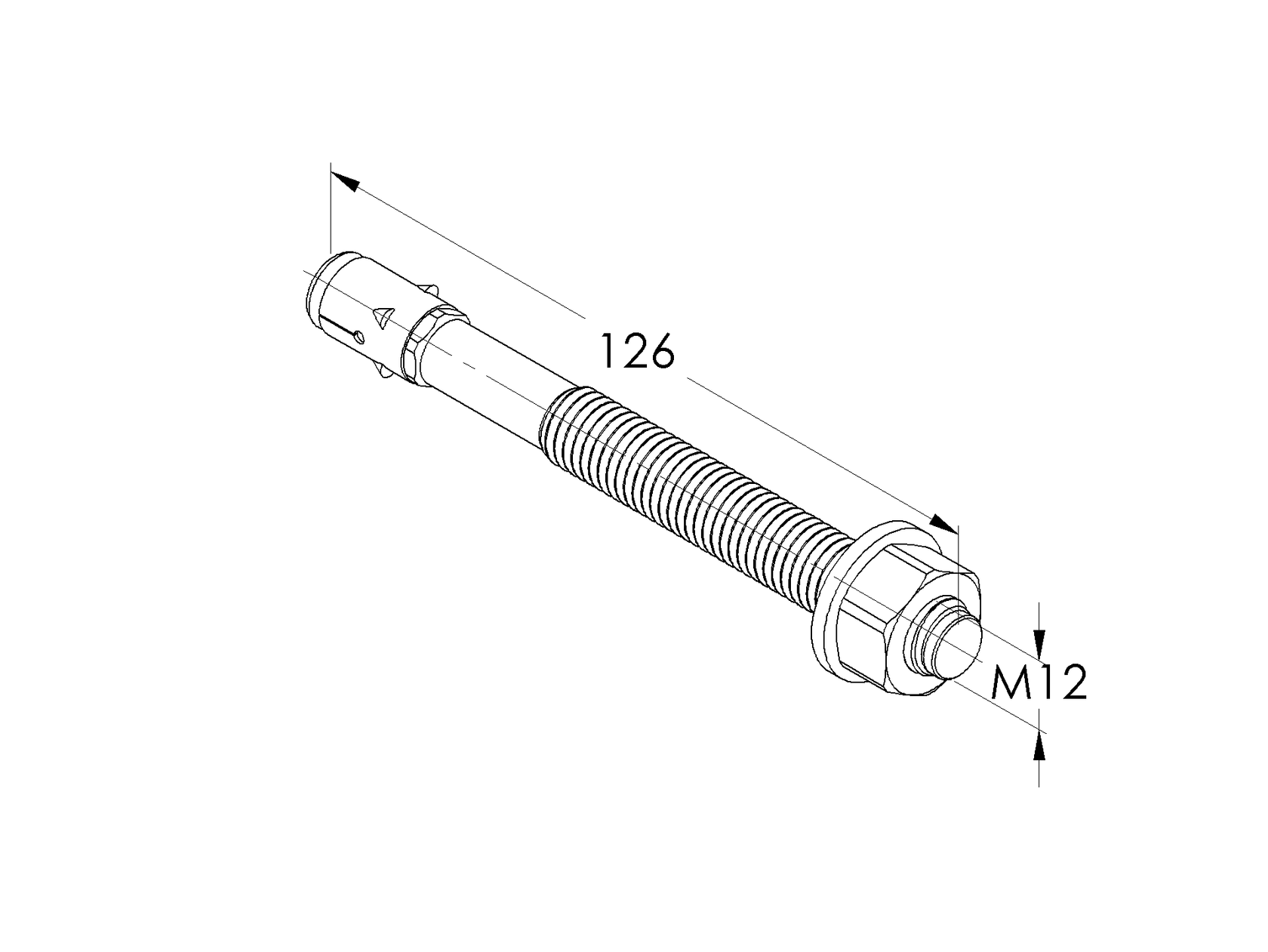

Steel anchor, M12, d12, L124

Material: Steel, Surface finish: Galvanized, L: 126, Use: Anchoring, M: 12, d: 12

651 Ft
without VAT
827 Ft
with VAT
PCS
Stock availability
SK Krompachy > 25
HU Nagytarcsa 0

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametre Na stiahnutie Časti zostavy Katalógový list Povinný sortiment Doporučené produkty Alternatívne produkty V setoch

Popis

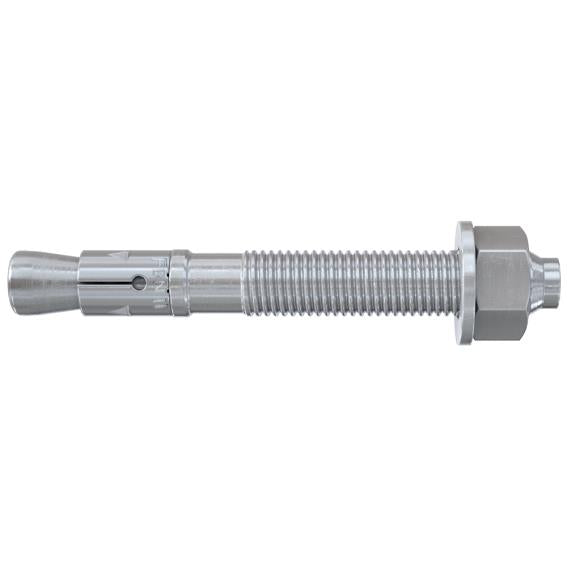

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete.
Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner.
The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation.

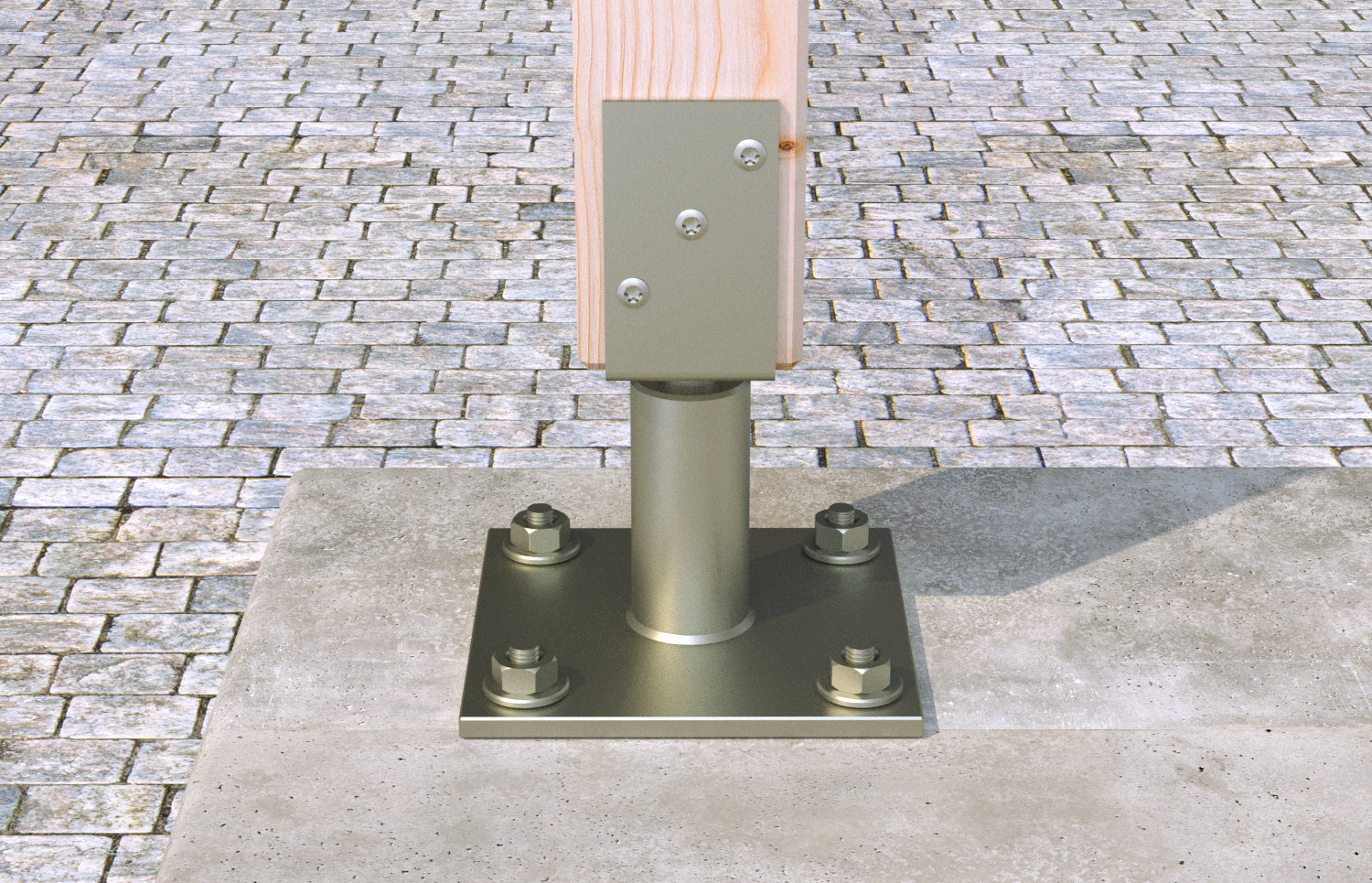

The bolt anchor is made of hot-dipped steel and is suitable for railings, handrails or consoles.
Functionality
The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).

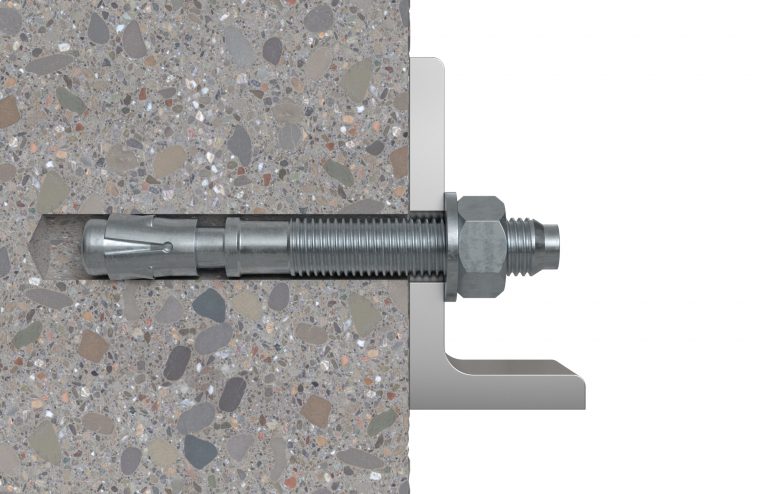

When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
The head embossing offers a simple control of the anchoring.

Parametre

Szénacél Fischer alapcsavar M12, d12, L124
Material
Defines the material from which the product is made.
Steel
Surface finish
Surface finish of product
Galvanized
L
Length parameter of the product
126
Use
Anchoring
d
12
M
12

Na stiahnutie

STEP
STEP file
PDF
Parametric drawing
PDF
Document for download

Katalog
