WINGO2024-ZKIT
Nice drive for a double-leaf gate, set with photocells
169.948 Ft
Unit price
/
Unavailable
without VAT
with VAT
Stock availability
SK Krompachy
> 25
HU Nagytarcsa
2
Kontakt
Kontakt
Add some general information about your delivery and shipping policies.
lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis

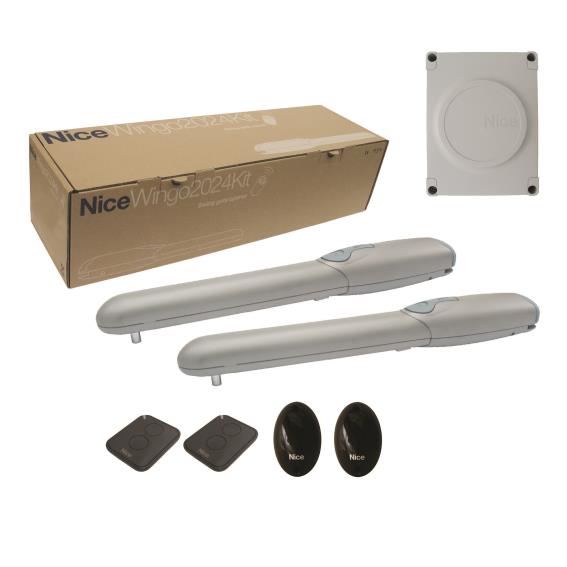

NICE drive set for swing gates up to 4m/400kg (recommended gate parameters 4m/200kg). Package includes 2x WG2024 motor, MCA2 control box, 2x FLO2RE remote control, BF photocells, 2x PLA13 end stop. Required mechanical end stops
Parametre
Mark
Information about producer of product
Nice
Max. wing length
Maximum wing length for the given drive
2m

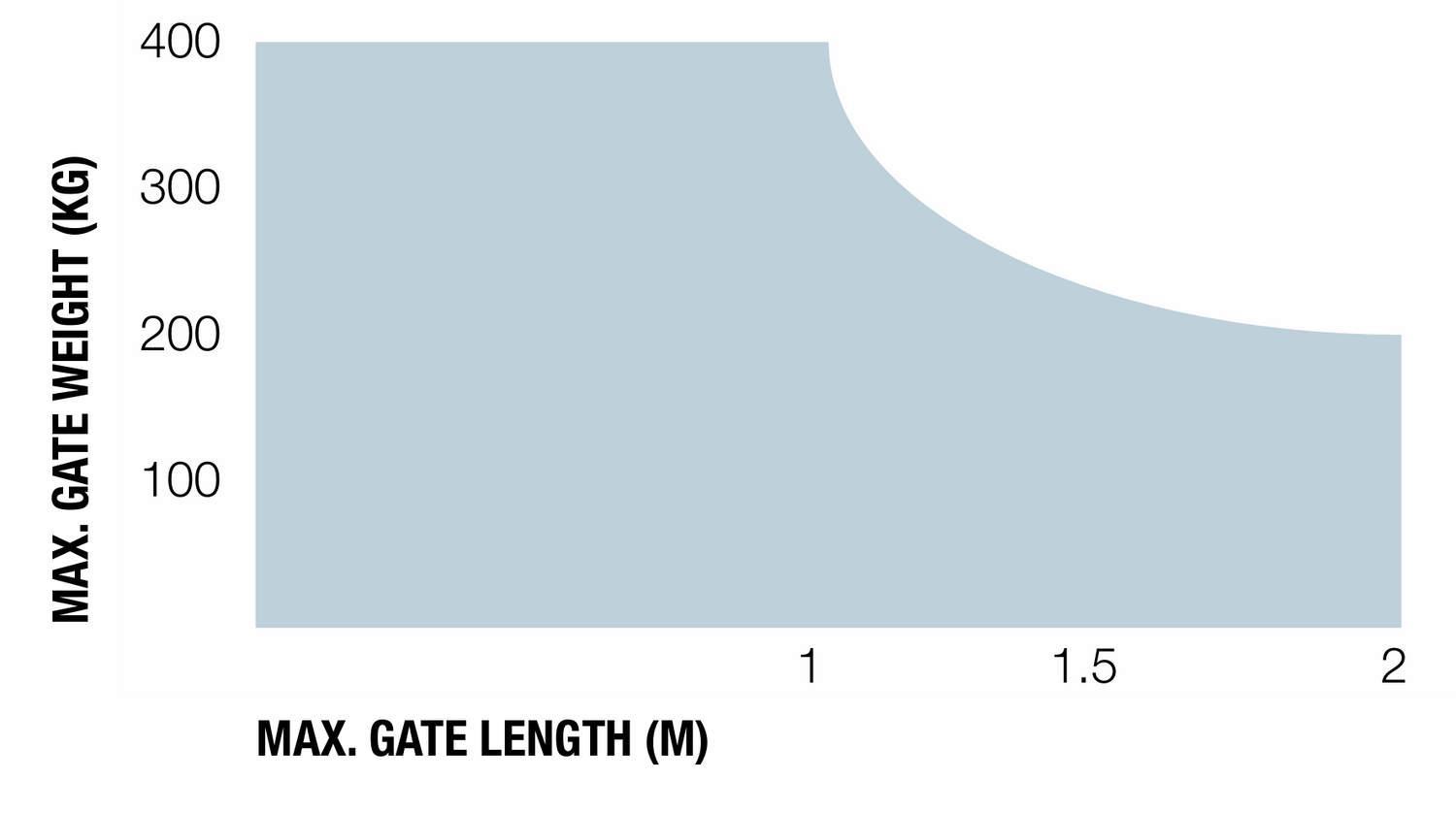

Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
100kg
Drive slowdown
Information about the drive slowing down before the end position.
Drive decelerate before endpoint
Type
Threaded
Frequency (MHz)
Určuje frekvenciu ovládača a riadiacej elektroniky.
433
End point
Information about the need for gate end stops with the selected drive.
Need end point for close position
Code type
Typ kódu pre správnu kombináciu ovládača s elektronikou.
Rolling
Parts of the set
null
Power supply
Type and value of the power supply voltage
AC 230V
Motor power supply
Type and value of the motor supply voltage
DC 24V
Performance
85W
Force
1500N
Speed
Parameter of the drive feed speed
0,018 m/s
Controller
MCA2R10
Protection level
IP44
Časti zostavy
Nice drive for double leaf gate, set WINGO-2024
1 pcs
Mark
Nice
Max. wing length
2m
Recommended weight of the wing
100kg
Photocell for plaster montage - do 30m EPM
1 pcs
Mark
Nice
Power supply
12-24V AC/DC
Protection level
IP44
