Q5/08-VM 250-M12-160

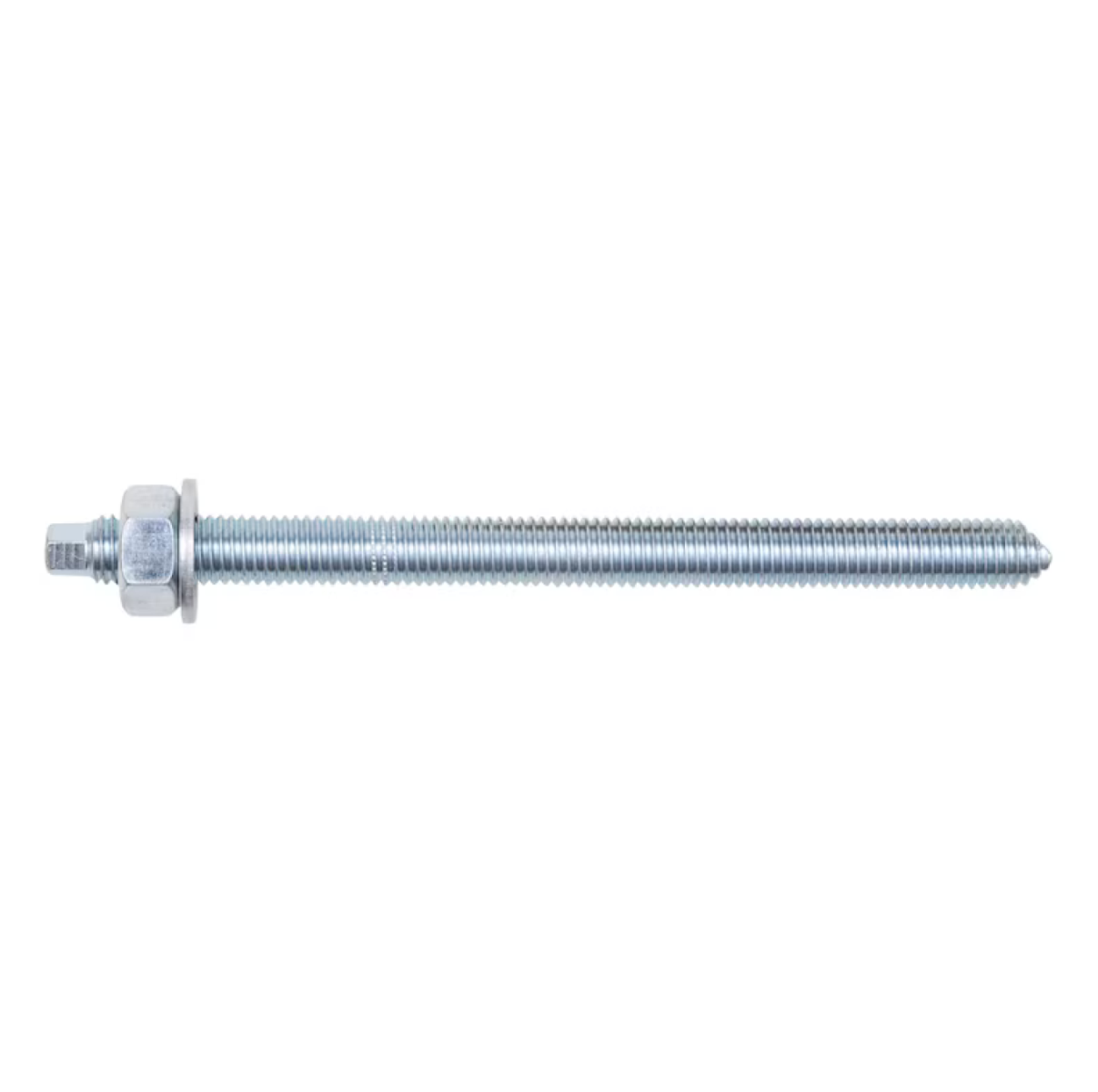

Anchor rod, Zn, M12, L160

Name: Anchor rod, Zn, M12, L160
Brand: umakov-hu
SKU: Q5/08-VM 250-M12-160
Price: 815.0 HUF
Availability: InStock

Material: Steel, Surface finish: Galvanized, L: 160, Use: Anchoring, M: 12

815 Ft

without VAT

1.035 Ft

with VAT

Stock availability

SK Krompachy 0

HU Nagytarcsa 0

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk

+421915093533 +393483490444

Popis

Anchor rod with peak angle and hex socket (allows rotary impact insertion with cassette system)
Usage:
- in dry interiors

Approval:
ETA-06/0074
ETA-12/0164
ETA-12/0569
ETA-17/0127
ETA-19/0542
ETA-20/0647
ETA-20/1038
ETA-21/0168

Metric anchor diameter: M12
Property class: 5.8
Attachment height: 35 mm
Anchor length: 160 mm
Effective anchoring depth: 110 mm
Nominal drill-bit diameter injection system: 14 mm
Drill hole depth: 110 mm
