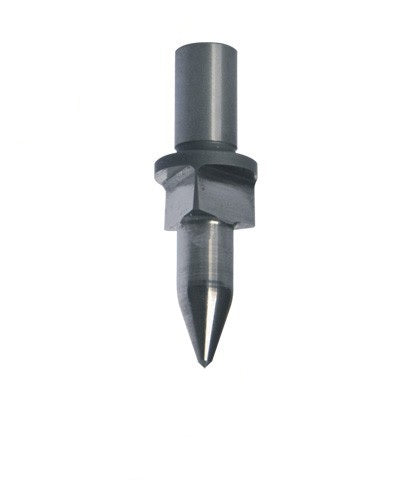

Fdrill, TC CUT/LONG
37.109 Ft
Unit price
/
Unavailable
Popis
L46,5/d10mm ISO DIN 13
The flowdrill contacts the material using a relatively high axial pressure and rotational speed. The heat generated makes the material soft and malleable enough to be shaped and perforated.
When the Flowdrill is pushed into the material, some of the extruded material forms a collar around the top surface of the workpiece.
The rest of the material forms a sleeve on the lower surface of the workpiece. All this happens in a matter of seconds. The process does not disturb the internal structure of the material.
As a result, the shaped case is remarkably strong and can be used to hold cases or to make a thread inside.
The flowdrill contacts the material using a relatively high axial pressure and rotational speed. The heat generated makes the material soft and malleable enough to be shaped and perforated.
When the Flowdrill is pushed into the material, some of the extruded material forms a collar around the top surface of the workpiece.
The rest of the material forms a sleeve on the lower surface of the workpiece. All this happens in a matter of seconds. The process does not disturb the internal structure of the material.
As a result, the shaped case is remarkably strong and can be used to hold cases or to make a thread inside.

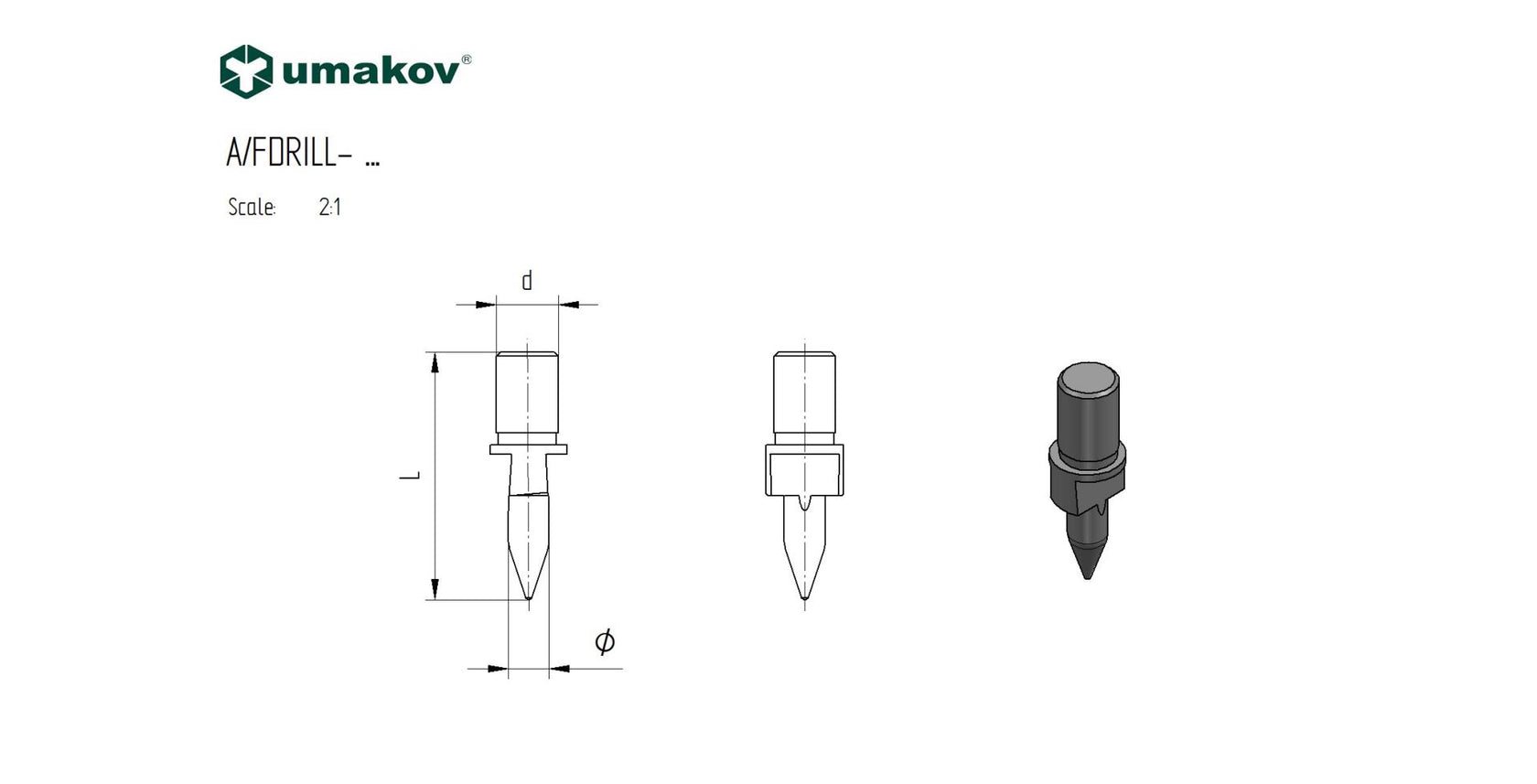

Parametre
Material
Defines the material from which the product is made.
Carbide
L
Length parameter of the product
46,5
Use
Drilling
d
10
M
10x1,5
Phi
9,2
